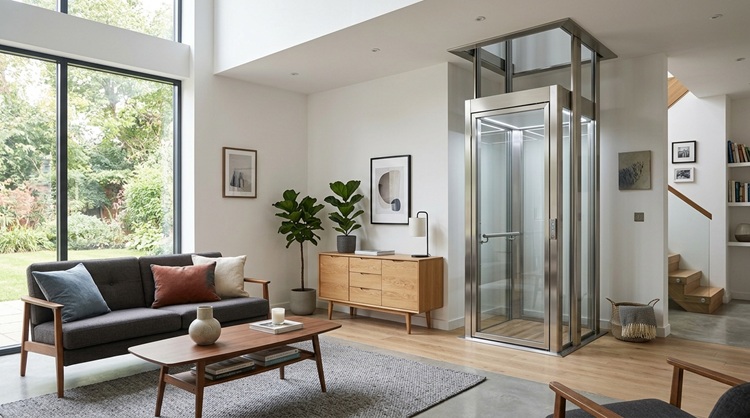

The idea of adding a lift to a home often triggers an immediate mental image of a large, commercial-style installation that requires gutting a closet, cutting through floors, and living in a construction zone for months. For most residential lift systems, that image is significantly off the mark. Modern residential lifts are designed to work within the constraints of an existing home, and the footprint required is often far smaller than homeowners expect before they start looking seriously.
Why Space Is Less of a Barrier Than Most People Assume
The space requirement for a residential lift depends heavily on the type of drive system and the design of the cab itself. A pneumatic vacuum lift, for example, operates inside a self-contained cylinder and requires no shaft construction at all. It sits directly on the floor, passes through a standard-sized opening cut in the ceiling, and arrives on the upper level in the same cylindrical structure. No pit, no overhead machine room, and a footprint that fits within the space of a reasonably large closet.
Hydraulic systems and cable-driven systems do require a more traditional shaft, but the shaft dimensions for a residential installation are considerably smaller than those required for a commercial elevator. A typical residential shaft can be constructed in a space that occupies roughly the same footprint as a standard closet, which is often the conversion that happens when homeowners choose to retrofit an existing home.
The key insight is that the right drive system for a given home depends on the specific layout, the ceiling construction, and the travel distance required. There isn’t one solution that works best for every situation, which is why a site evaluation before any other decision tends to produce the best outcomes.
Drive System Options and What They Mean for Space
Understanding the basic differences between drive system types helps clarify what the space requirements actually are before any measurements have been taken.
Pneumatic Vacuum Systems
A pneumatic vacuum lift uses air pressure differentials to move the cab up and down inside a transparent cylinder. Because the cylinder is self-supporting, no shaft needs to be built around it. The structural impact on the home is minimal: a round opening in the ceiling of the lower floor, and the cylinder sitting cleanly on the floor. These systems are among the most space-efficient options available for multi-story residential applications.
Hydraulic Systems
Electro-hydraulic systems use a fluid-driven piston to raise and lower the cab. They typically require a machine room or mechanical space nearby to house the pump and fluid reservoir, which adds a secondary space consideration beyond the shaft itself. The shaft for a hydraulic residential lift is compact by commercial standards, and the system is well-suited to homes where a small dedicated mechanical space is available or can be incorporated into a closet or utility area.
Cable and Gearless Drive Systems
Cable-driven and gearless systems lift the cab using a motor and counterweight arrangement, similar in principle to commercial elevators but scaled significantly for residential use. These systems can be built with very compact overhead machinery, and the shaft dimensions remain manageable within a residential footprint. They tend to be quieter and smoother in operation than hydraulic systems, and they work well in applications where the lift will see frequent, regular use.
Retrofitting an Existing Home vs. Building New
The space question looks different depending on whether the lift is going into an existing home or being designed into a new build.
In new construction, the simplest approach is to plan for the shaft from the start. A dedicated shaft space incorporated into the structural design costs less to build than retrofitting one later, and the options for placement are wider since the framing can be arranged to accommodate it.
In an existing home, retrofitting is entirely achievable but does require more creative problem-solving. The most common approaches involve converting an existing closet stack on adjacent floors, carving a new shaft through a portion of floor and ceiling structure, or, for pneumatic systems, simply placing the cylinder in a location where the ceiling opening can be cut without affecting structural members.
What the Process Actually Looks Like
For most residential installations, the process begins with a site visit and measurement. The installer evaluates the home’s floor plan, identifies the most practical location for the lift based on access needs and structural conditions, and presents options that match the available space. From that point, the installation timeline for a retrofit typically runs a matter of days for a pneumatic system or a few weeks for a shaft-based installation, depending on the complexity of the construction involved.
For homeowners in the area exploring small home elevators in Reno, NV, the first conversation is usually about where the lift needs to land on both floors and what the ceiling structure between those floors allows. Those two factors together narrow the drive system options quickly and give a much clearer picture of what the project actually looks like before any commitment is made.
What to Ask Before You Commit
A few questions tend to make the early conversations more productive: Is the preferred location structurally feasible without significant reinforcement? Which drive system types are compatible with the available travel height? Is a machine room required, and if so, where does it fit? What’s the minimum cab size that still works for the intended use? These aren’t questions that require engineering expertise to ask. A good residential lift specialist will walk through all of them during the initial evaluation.
Conclusion
Space limitations are one of the most common reasons homeowners talk themselves out of a residential lift before they’ve gathered the facts. The reality is that compact, well-designed systems exist specifically for homes where space is at a premium, and the footprint required for most installations is considerably more manageable than the first mental image suggests.
